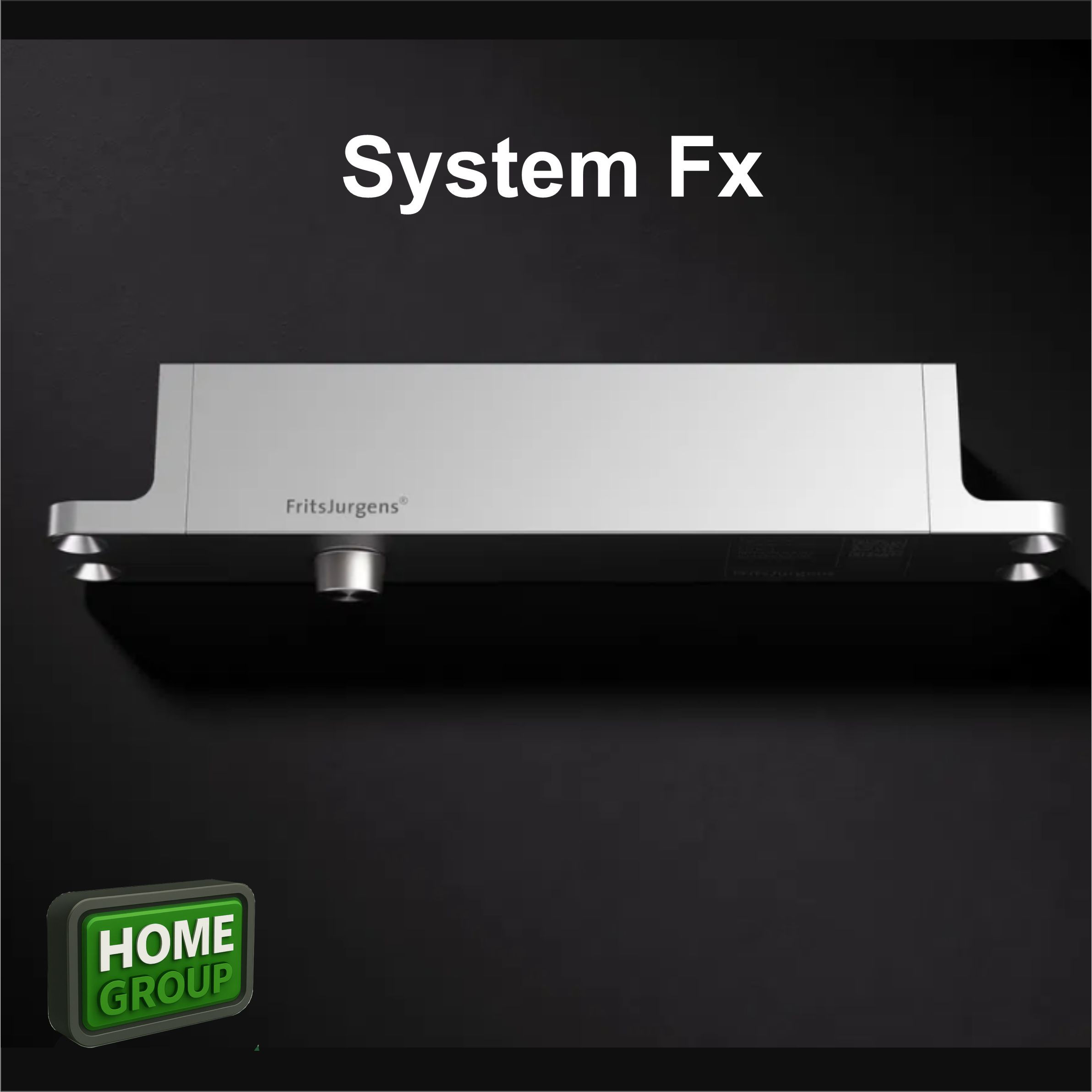

Set - System- Fx 70 mm Class A - squared
System Fx
System Fx offers extremely strong hold positions at every 90 degree angle. With its minimalistic, sleek, and durable design it is the ideal solution for interior doors.
Tailored for interior spaces
System Fx is designed for side placement, making it the ideal choice for interior pivot doors. Its robust engineering ensures reliable hold positions that enhance functionality and aesthetics in residential and commercial settings. It is the ideal system for high-traffic areas where the door primarily needs to remain open in a single hold position.
Versatile hold positions
With exceptionally strong hold positions at 0°, 90°, 180° and 270°, System Fx adapts effortlessly to diverse applications, providing smooth operation and precision alignment for both single- and double-acting doors, and even revolving doors (middle-placement).
How to handle System Fx
System Fx is pretty self-explanatory, but it has some things you need to take into account. For instance, how to handle it correctly. To open or close, you guide the door manually until it reaches its hold position.
Features
Compact design
With a height of just 38 mm and a width of 32 mm, System Fx fits seamlessly into slim-profile doors, combining effortless installation with a sleek, minimalist aesthetic that doesn’t sacrifice performance.
Weight capacity
System Fx is engineered to support doors weighing between 20 and 209 kg, ensuring reliable functionality across a wide range of applications, from lightweight to heavier door designs.
Returns to closest hold position
Whether installed in middle or side placement, System Fx returns to the nearest hold position from +10 or -10 degrees from the hold position, for enhanced functionality and convenience.
System Fx 70 mm Class A and C
| System Specifications | |
|---|---|
| Dimensions | 210 x 32 x 38 mm |
| Placement | Side to middle placement |
| Pivot point | From 70 mm to middle placement |
| Cover plates | No |
| Weight capacity | Class A: 20 ‑ 119 kg Class C: up to 209 kg |
| Pairs with | |
| Top pivots | Top pivot 70 mm Class B (Class A) Top pivot 70 mm Class G (Class C) Top pivot Reversed (all classes) |
| Floor plates | Floor plate squared Floor plate round Floor plate Flush squared Floor plate Flush rounded |
| Functionalities | |
| Free swing | Yes |
| Hold Positions | Yes |
| Self-closing | No |
| Door specifications | |
| Door acting | Revolving [door]: 360° Double-acting: 180° Single-acting: 90° |
| Door width | Unlimited |
| Door height | Unlimited |
| Pivot point | Side and middle |
| Minimum door thickness | 40 mm |
| Top gap | 4 - 10 mm |
| Bottom gap | 7 - 11 mm |
| Door movement | Free swing between 10° and 80°, with hold positions at 0°, 90°, 180° and 270° |
